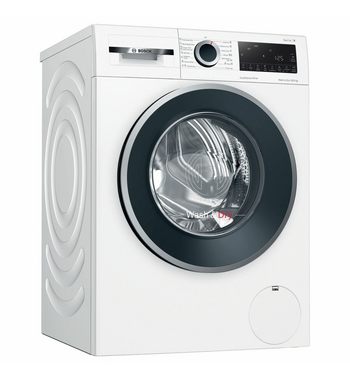

Bosch WNA254U1AU
10 kg front loader with a built-in dryer. 4.5 stars, 306 kWh a year (about $98 at 32¢/kWh), 598 mm wide by 635 mm deep.
If you buy through a link on this page, the retailer may pay us a commission.
Prices, key specs and fit
Prices
No price for this model at the retailers checked (28 Oct 2026): The Good Guys, Appliances Online and Bing Lee. It may be sold elsewhere, or through the brand's site.
Similar models with a price
 LG WXC3-1410W 10 kg | $1,073 | Check price |
 Bosch WNA254U3AU 10 kg | $1,599 | Check price |
 LG WX3-1410W 10 kg | $1,099 | Check price |
Same load type and a similar capacity, priced at the retailers checked.
Key specs
- Capacity
- 10 kg
- Load type
- Front, washer-dryer combo
- Series
- Bosch Series 6
- Width
- 598 mm
- Depth
- 635 mm
- Height
- 848 mm
- Weight
- 81 kg
- Spin speed
- 1400 rpm
- Labelled cycle
- 5 h 46 m
- Water inlets
- Cold Only
- Energy stars
- 4.5
- Energy a year
- 306 kWh
- Cost a year at 32¢/kWh
- $98
- Cost per wash
- about 27c
- Manufacturer's warranty
- 2 Years
- Made in
- China
- Registration no.
- ACW1690
Size, weight, spin, noise, water, series and warranty figures, where the registry is silent, come from retailer listings and manufacturers' own product pages, checked 28 Oct 2026.
Depth is the cabinet figure and leaves out hose and tap clearance behind the machine.
Will it fit
The cabinet measures 598 mm wide, 635 mm deep and 848 mm high, from the register and retailer spec sheets. Enter the space it has to go in.
Not included. These are cabinet figures. Manufacturers state a ventilation clearance per model in the installation instructions; a figure typed into the Clearance box applies to both sides, the back and the top. No clearance figure for this model is held here, so the answer above allows none until one is entered.
Manuals and guides
These links go to Bosch's own site. One guide often covers several models, so check the model number on the document reads WNA254U1AU before relying on its figures.
How it compares
- 635 mm deep; 32 of the 75 with a listed size sit shallower.
- 306 kWh a year against a median of 241 across the 98 other front loaders within a kilo of its size; 78 of them use less.
- Labelled cycle 5 h 46 m; the median for similar machines is 5 h 16 m.
Compare it
Similar models: LG WXC3-1410W · Bosch WNA254U3AU · LG WX3-1410W · Miele WQ 1200 WPS · Fisher & Paykel WH1060PG5 · Westinghouse WWF1044M7SA. More in Bosch washing machines, Washer-dryer combos and Front load washing machines.
Figures trace to this machine's entry (ACW1690) in the Australian Government's energy-rating database. Energy and cycle figures are from the government's labelled test program, which assumes one warm wash a day; household bills vary with use and tariff.
