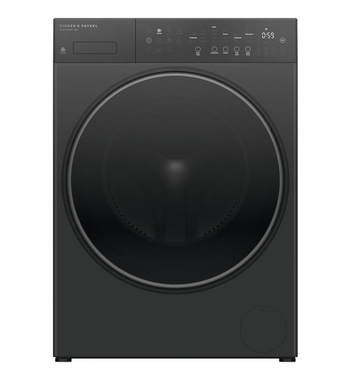

10 kg front loader, priced from $1,173 at the retailers tracked (checked 28 Oct 2026). 5 stars, 228 kWh a year (about $73 at 32¢/kWh), 602 mm wide by 593 mm deep.
If you buy through a link on this page, the retailer may pay us a commission.
Prices checked 28 Oct 2026. Retailers may change prices during the day.
Key specs
Capacity
10 kg
Load type
Front
Width
602 mm
Depth
593 mm
Height
850 mm
Weight
78 kg
Spin speed
1400 rpm
Labelled cycle
5 h 40 m
Water inlets
Hot and Cold
Water stars (WELS)
4.5
Energy stars
5
Energy a year
228 kWh
Cost a year at 32¢/kWh
$73
Cost per wash
about 20c
Manufacturer's warranty
2 Years
Made in
China
Registration no.
ACW1660
Size, weight, spin, noise, water, series and warranty figures, where the registry is silent, come from retailer listings and manufacturers' own product pages, checked 28 Oct 2026.
Depth is the cabinet figure and leaves out hose and tap clearance behind the machine.
Will it fit
The cabinet measures 602 mm wide, 593 mm deep and 850 mm high, from the register and retailer spec sheets. Enter the space it has to go in.
Not included. These are cabinet figures. Manufacturers state a ventilation clearance per model in the installation instructions; a figure typed into the Clearance box applies to both sides, the back and the top. No clearance figure for this model is held here, so the answer above allows none until one is entered.
Manuals and guides
Fisher & Paykel's manuals are on its support site.
Figures trace to this machine's entry (ACW1660) in the Australian Government's energy-rating database, and to retailer checks on the dates shown. Energy and cycle figures are from the government's labelled test program, which assumes one warm wash a day; household bills vary with use and tariff.
