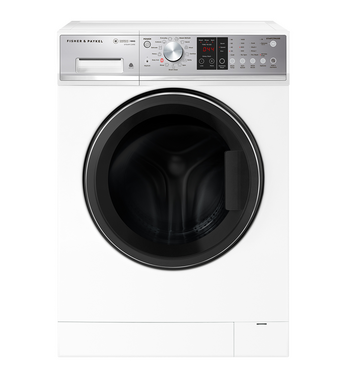

Fisher & Paykel WH1060P4
10 kg front loader. 4.5 stars, 297 kWh a year (about $95 at 32¢/kWh), 655 mm wide by 600 mm deep.
If you buy through a link on this page, the retailer may pay us a commission.
Prices, key specs and fit
Prices
No price for this model at the retailers checked (28 Oct 2026): The Good Guys, Appliances Online and Bing Lee. It may be sold elsewhere, or through the brand's site.
Similar models with a price
 Miele WQ 1200 WPS 10 kg | $5,999 | Check price |
 LG WXC3-1410W 10 kg | $1,073 | Check price |
 Bosch WNA254U3AU 10 kg | $1,599 | Check price |
Same load type and a similar capacity, priced at the retailers checked.
Key specs
- Capacity
- 10 kg
- Load type
- Front
- Width
- 655 mm
- Depth
- 600 mm
- Height
- 850 mm
- Weight
- 80 kg
- Spin speed
- 1400 rpm
- Labelled cycle
- 5 h 09 m
- Water inlets
- Cold Only
- Energy stars
- 4.5
- Energy a year
- 297 kWh
- Cost a year at 32¢/kWh
- $95
- Cost per wash
- about 26c
- Manufacturer's warranty
- 2 Years
- Made in
- China
- Registration no.
- ACW1701
Size, weight, spin, noise, water, series and warranty figures, where the registry is silent, come from retailer listings and manufacturers' own product pages, checked 28 Oct 2026.
Depth is the cabinet figure and leaves out hose and tap clearance behind the machine.
Will it fit
The cabinet measures 655 mm wide, 600 mm deep and 850 mm high, from the register and retailer spec sheets. Fisher & Paykel specifies an opening of 870 mm high for it, and the answer below is measured against that rather than against the cabinet. Enter the space it has to go in.
Not included. These are cabinet figures. Manufacturers state a ventilation clearance per model in the installation instructions; a figure typed into the Clearance box applies to both sides, the back and the top, and replaces the stated opening above. For this model Fisher & Paykel states 20 mm each side in its installation guide, read 21 Sept 2026, and the answer above allows for that until another figure is entered.
Manuals and guides
These links go to Fisher & Paykel's own site. One guide often covers several models, so check the model number on the document reads WH1060P4 before relying on its figures.
How it compares
- 600 mm deep; 23 of the 75 with a listed size sit shallower.
- 297 kWh a year against a median of 241 across the 98 other front loaders within a kilo of its size; 76 of them use less.
- Labelled cycle 5 h 09 m; the median for similar machines is 5 h 16 m.
Compare it
Similar models: Miele WQ 1200 WPS · LG WXC3-1410W · Bosch WNA254U3AU · LG WX3-1410W · Fisher & Paykel WH1060PG5 · Westinghouse WWF1044M7SA. More in Fisher & Paykel washing machines, Front load washing machines and 10 kg washing machines.
Figures trace to this machine's entry (ACW1701) in the Australian Government's energy-rating database. Energy and cycle figures are from the government's labelled test program, which assumes one warm wash a day; household bills vary with use and tariff.
